PI2X240

PI2X240 Regular Delivery

24 inch Raspberry Panel PC

Product Features

·Display type：10.1"，10.4"，11.6"，12.1"，12.2"，15"，15.6"，17"，17.3"， 18.5"，19"，21.5"，24"，27"

·Front panel/back cover：Aluminium-magnesium alloy

··Front panel/Rear：IP65 / IP20

··Screen Type: Single point resistive touchscreen，Multi-point capacitive touchscreen，Non-touch screen

·Built-in UPS power supply

·RTC real-time clock

·OS：LINUX or Raspberry PI

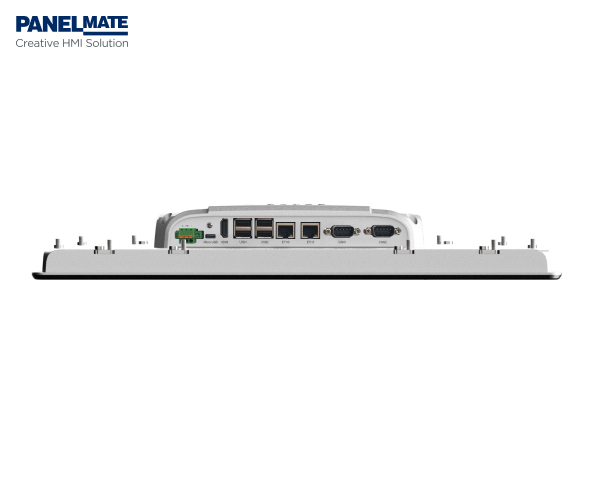

·Interface：HDMI，Type-C，4xUSB and 2xCAN

·DC 24V

Document Download

CN_DataSheet Download EN_DataSheet Download More Document Download

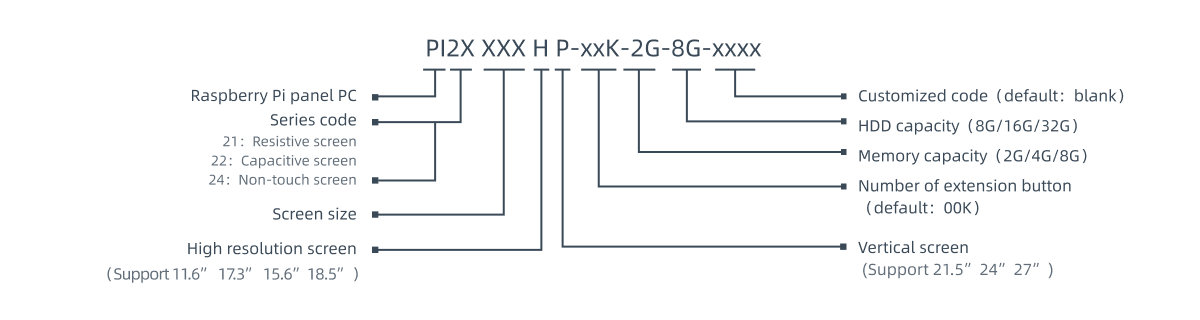

Naming Rules Specifications

Touch Type

Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
Light Transmission

>85%
Controller

USB interface
Driver Support

Ubuntu，Ubuntu Mate
Multi-touch

10 points（LINUX）
Surface Hardness

Capacitive touchscreen：Mohs' Number 7H

Operating Temperature

0 ~ 50℃
Storage Temperature

-20 ~ 60℃
Relative Humidity

5~95%（Non condensation）
Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Vibration

Operating Random Vibration Test 5~500Hz, 1Grms@with HDD; 2Grms@with SSD, follow IEC 60068-2-64
EMC

CE/FCC Class A
Front Panel Protection

IP65
