IDD2X116-R2

IDD2X116-R2 Regular Delivery

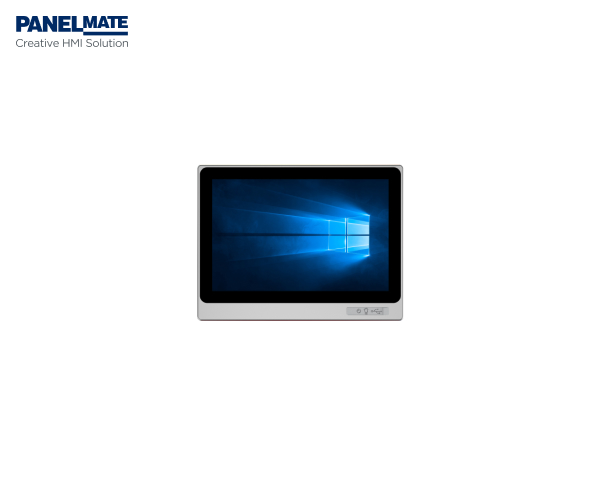

11.6 inch Industrial Monitor KVM

Product Features

·Display type：10.1", 10.4", 11.6", 12.1", 12.2", 15", 15.6", 17", 17.3", 18.5", 19", 21.5", 24",27"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP20

·Screen Type: Single point resistive touchscreen，Multi-point capacitive touchscreen，Non-touch screen

·OS：Windows7, Window8, Windows10, Windows11, Linux, etc

·Video and touch signals can use the IDD-LINK4 interface simultaneously or using HDMI and USB signals separately
notice:both cannot be used simultaneously

·DC 24V

·R1（IDD-LINK）Long distance USB signal output，support 50m

·R2（IDD-LINK4）Video and USB are transmitted via a single CAT6 network cable，Transmission distance up to 100m

Document Download

CN_DataSheet Download More Document Download

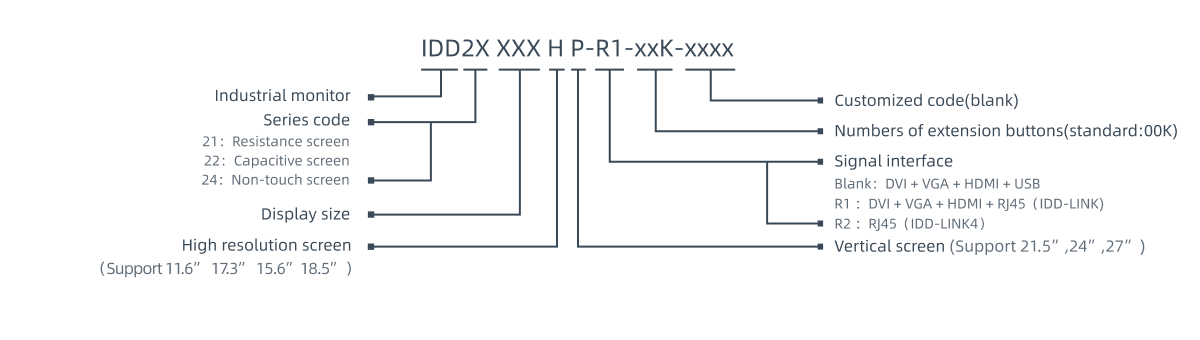

Naming Rules Specifications

Control button

Set contrast ratio and luminance via OSD at the back cover
Housing

Front panel & back cover:Aluminium-magnesium alloy,Grounding isolation protection
Mounting

Embedded;Wall-mounted;VESA;Desktop

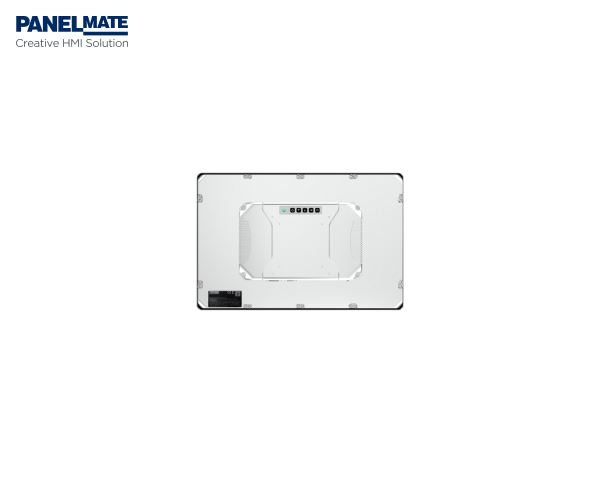

Rear I/O

IDD-LINK4(or HDMI interface) notice:both cannot be used simultaneously

Input Voltage

Phoenix terminal：DC 24V
Power

5W

Dimension (WxHxD)

310mm x 214mm x 55.5mm (12.20" x 8.43" x 2.19")
Open Size (WxH)

2299mm x 203mm (11.77" x 7.99")

Display type

11.6" WXGA TFT
Resolution

1920 x 1080
Colors

16.7M
Active Area (WxH)

256.32mm x 144.18mm (10.09" x 5.68")
Backlight

LED
MTBF(Hour)

50000hrs
Pixel Pitch（HxV）

0.1335 x 0.1335
Luminance(cd/m2)

250cd / m2
Contrast Ratio

1000:1
Viewing Angle

(L)85 / (R)85 / (U)85 / (D)85

Touch Type

Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
Light Transmission

>85%
Controller

USB
Driver Support

Windows7, Window8, Windows10, Windows11, Linux, etc
Multi-touch

10 points
Surface Hardness

Resistive touchscreen: Mohs' Number >= 3H;Capacitive touchscreen: Mohs' Number 7H

Operating Temperature

0 ~ 50℃
Storage Temperature

-20 ~ 60℃
Relative Humidity

5~95%(Non condensation)
Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Vibration

Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
EMC

CE/FCC Class A
Front Panel Protection

Front panel IP65 compliant
