IDD5X185-R2 Regular Delivery

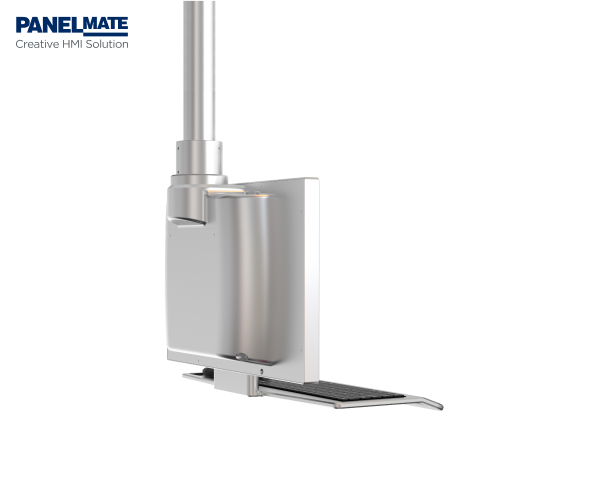

18.5 inch Industrial Arm-mounted Operation Panel KVM
Product Features

·Display size:15",15.6",18.5",19,"21.5"

·Front panel/back cover:Aluminium-magnesium alloy

·IP protection level:IP65

·Screen Type: Single point resistive touchscreen,Multi-point capacitive touchscreen,Non-touch screen

·OS:Windows7, Window8, Windows10, Windows11, Linux, etc

·Video and touch signals can use the IDD-LINK4 interface simultaneously or using HDMI and USB signals separately
notice:both cannot be used simultaneously

·DC 9~36V wide volts range

·R1(IDD-LINK),Long distance USB signal output,support 50m

·R2(IDD-LINK4),Video and USB are transmitted via a single CAT6 network cable,Transmission distance up to 100m

·Support Customized LOGO and buttons

Document Download

Specifications
  • Display size
    18.5"
  • Resolution
    1366x768
  • Mounted
    4460 or 48 arm-mounted
  • Dimension (WxHxD) (Keyboard bay not included)
    465.4 x 355.3 x 122.5 mm
  • Contrast Ratio
    1000:1
  • Luminance
    500 cd/㎡
  • Power
    16W
  • Operating Temperature
    0~50℃
  • Storage Temperature
    -20~60℃
  • Carton size
    50 x 59 x 26cm
