IDD4X215LP-5K Regular Delivery

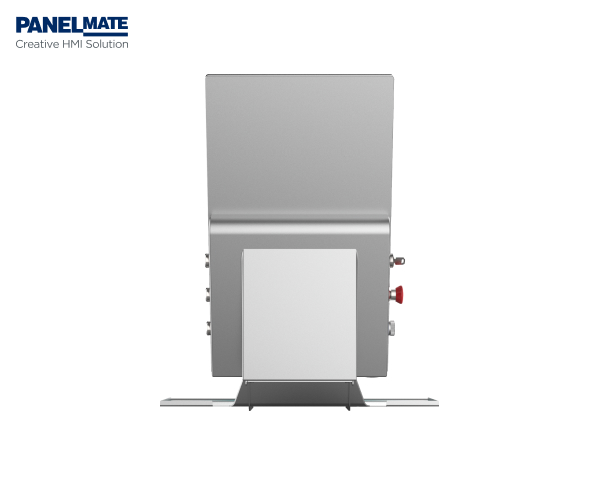

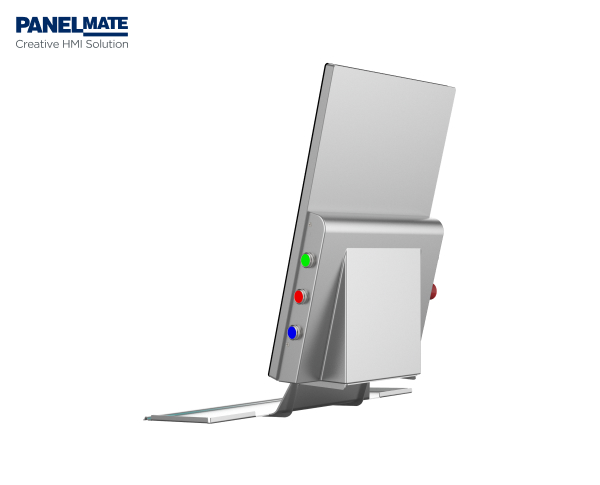

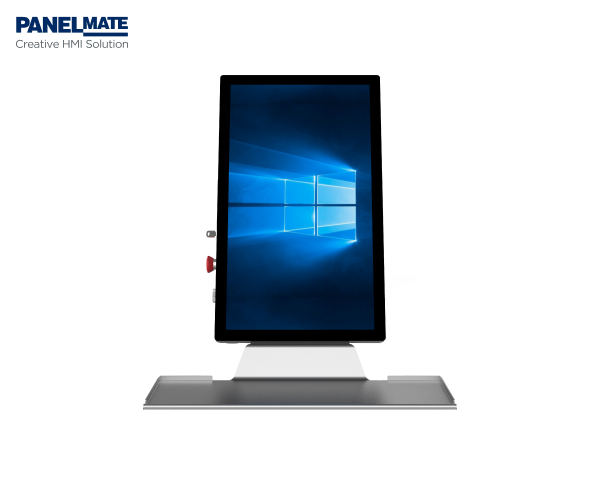

21.5 inch Economic Arm-mounted Operation Panel (Vertical Screen)
Product Features

·Screen size:21.5"

·Front panel:Aluminium-magnesium alloy,Back cover:painted sheet metal

· Front panel/Rear:IP65 / IP20

·Touchcreen mode:Single point resistive touchscreen,Mult-touch capacitive Screen,Non-touch screen

·OS:WinXP,Win7,Win10/Win11,WinCE,Linux

·Interface:DVI,HDMI,VGA,2xUSB

·Power supply:DC 9~36V

·Optional R1(IDD-LINK),Long distance USB signal output,support 50m

·Optional R2 (IDD-LINK4),Video and USB are transmitted via a single CAT6 network cable,Transmission distance up to 100m

Document Download

specifications
  • Screen Size
    21.5"
  • Resolution
    1920X1080
  • Mounting
    4460 or 5065 Arm-mounted
  • The size w/o keyboard size(mm)
    309.5 x 517.6 x 20
  • Contrast Ratio
    3000:1
  • Luminance(cd/㎡)
    250
  • Power(w)
    20
  • Work Temperature(℃)
    0~50
  • Storage Temperature(℃)
    -20~60
  • Carton Size(cm)
    47 x 60 x 28
