PI2X101 Regular Delivery

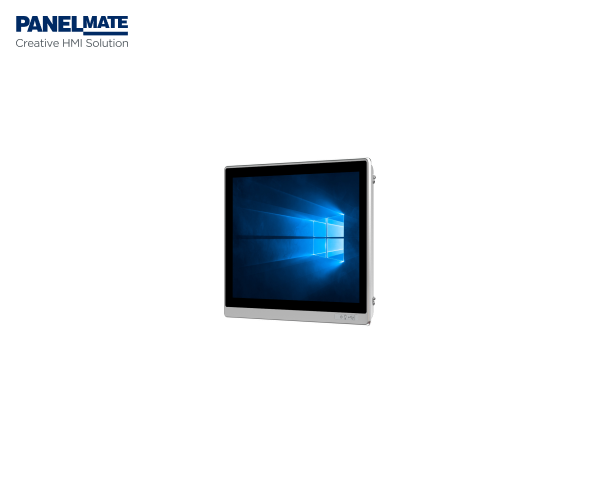

10.1 inch Raspberry Panel PC
Product Features

·Display type：10.1", 10.4", 12.1", 12.2", 15", 15.6", 17", 18.5", 19", 21.5"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP20

·Screen Type: Single point resistive touchscreen，Multi-point capacitive touchscreen，Non-touch screen

·Built-in UPS power supply

·RTC real-time clock

·OS：LINUX or Raspberry PI

·Interface：HDMI，Type-C，4xUSB and 2xCAN

·DC 24V

Document Download
CN_DataSheet Download EN_DataSheet Download More Document Download
Naming Rules Specifications

Processor
  • CPU
    Broadcom BCM2711.1.5 GHz,64-bit,4 cores,ARM Cortex-A72
  • Memory
    2G（Deafult）/4G/8G optional
  • Storage
    8G eMMC（Deafult）/16G/32G eMMC optional
I/O
  • LAN
    1x1000Mbps，BCM54210PE；1 x 100Mbps，SR9900AI
  • USB
    1 x Micro USB，4 x USB 2.0
  • CAN
    2 x CAN
  • Display Port
    HDMI
Power
  • Input Voltage
    DC 24V
  • Power
    15W
Physical
  • Dimension (WxHxD/mm)
    256.5mm x 193mm x 54mm (10.10" x 7.60" x 2.13")
  • Open Size (WxH/mm)
    248.5mm x 185mm (9.78" x 7.28")
  • Mounting
    Embedded,Wa Wa W ll-mounted，desktop，VESA
LCD
  • Display Type
    10.1" WXGA TFT
  • Resolution
    1280 x 800
  • Colors
    16.7M
  • Active Area (WxH/mm)
    216.96mm x 135.60mm (8.54" x 5.34")
  • Backlight
    LED
  • MTBF（hour）
    30000hrs
  • Pixel Pitch（HxV）
    0.1695 x 0.1695
  • Luminance(cd/m2)
    400cd / m2
  • Contrast Ratio
    800:1
  • Viewing Angle
    (L)85 / (R)85 / (U)85 / (D)85
Touchscreen
  • Touch Type
    Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
  • Light Transmission
    >85%
  • Controller
    USB interface
  • Driver Support
    Ubuntu，Ubuntu Mate
  • Multi-touch
    10 points（LINUX）
  • Surface Hardness
    Resistive touchscreen：Mohs' Number> = 3H; Capacitive touchscreen：Mohs' Number 7H
Environment
  • Operating Temperature
    -20 ~ 70℃
  • Storage Temperature
    -30 ~ 80℃
  • Relative Humidity
    5~95%（Non condensation）
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz, 1Grms@with HDD; 2Grms@with SSD, follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Front Panel Protection
    IP65
