IPC2X104 Regular Delivery

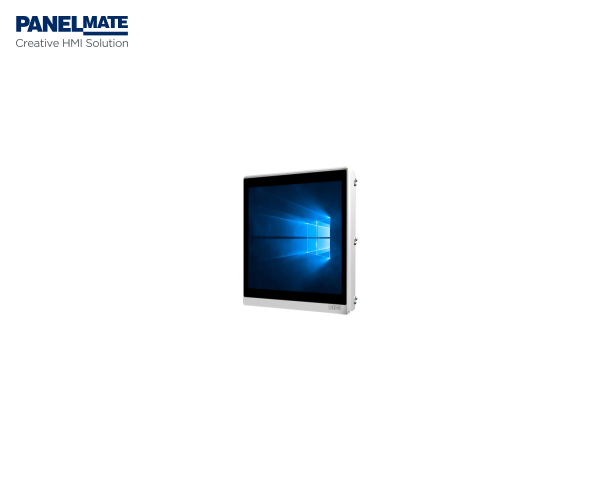

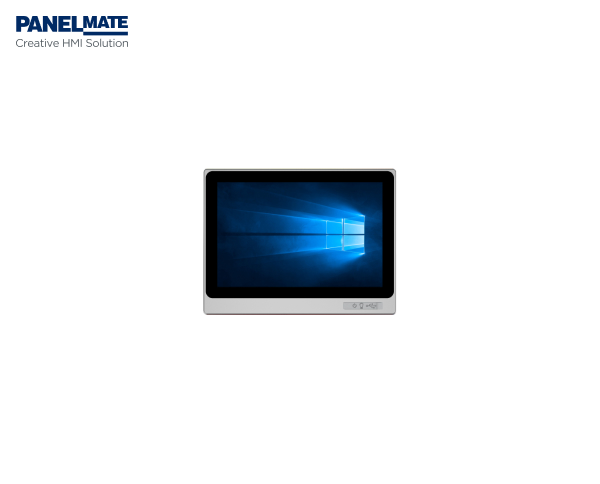

10.4 inch Industrial Panel PC
Product Features

·Display type:10.1",10.4",12.1",12.2",15",15.6",17",18.5",19",21.5",27"

·Front panel/back cover:Aluminium-magnesium alloy

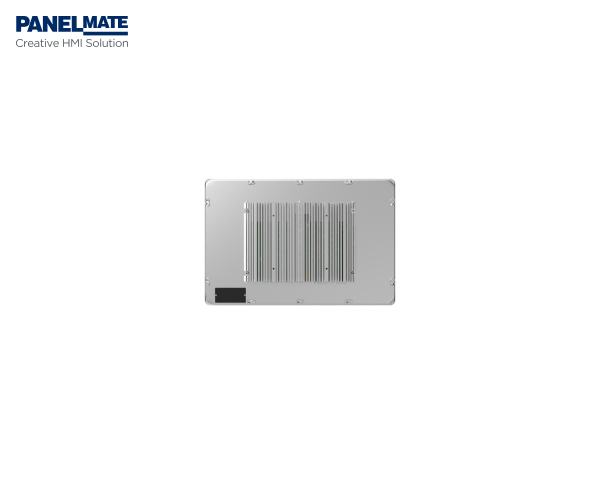

·Large aluminium fins design to ensure the reliability and heat dissipation

·Front panel/Rear:IP65 / IP20

·Screen Type: Single point resistive touchscreen,Multi-point capacitive touchscreen,Non-touch screen

·OS:Win XP, Win7,Win10/Win11, Win CE, LINUX

·Equipped with 2xIntel i210AT Gigabit network cards,4xUSB ports

·Processor:Intel Celeron J6412(don’t support Win XP,Win 7)/3855U/ 3865U and Intel skylake i3/i5/i7 multiple CPU options

·Extendable WIFI/4G

·Customized LOGO


Processor
  • CPU
    Intel® Celeron® J6412、Intel® Core™ 6/7/10/11/12/13th i3/i5/i7
  • Bios
    AMI UEFI 64Mbit
  • Chipset
    Intel®Soc
  • Memory
    DDR4-3200 Max 64G
  • Storage
    1 x mSATA+2 x M.2
Rear I/O
  • Network (LAN)
    2 x 1000Mbps RJ45 with surge protection/3xRJ45(processor Intel® Core™ 10/11/12/13th)
  • Audio
    Realtek ALC662VD audio controller,support 5.1 channels
  • USB
    4xUSB3.0
  • COM
    2xRS232/RS485 with surge protection,RS485 support automatic flow control
  • Expansion Slot
    1xMin-Pcle X1,Support 4G LTE/WIFI/BT with Sim card slot

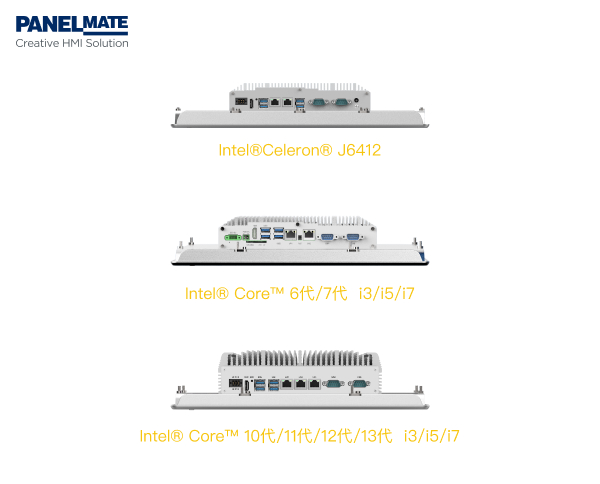

  • Rear I/O
    Intel® Celeron® J6412:1xHDMI/2xRJ45/4xUSB/2xCOM/AUDIO/DC IN/Reset/Ground   Intel® Core™ 6/7th :1xHDMI/2xRJ45/4xUSB/2xCOM/AUDIO/DC IN/Reset/Ground   Intel® Core™ 10/11/12/13th:1xHDMI/3xRJ45/4xUSB/2xCOM/DC IN/Reset/Ground
Power
  • Input Voltage
    DC 9~36V
  • Power
    30W(Intel® Celeron® J6412、Intel® Core™ 6/7th) ;105W (Intel® Core™ 10/11/12/13th)
Physical
  • Display Port
    HDMI
  • Dimension (WxHxD/mm)
    264mmx227.5mmx63.5mm(10.39"x8.96"x2.50")
  • Open Size (WxH/mm)
    253mmx217mm(9.96"x8.54")
  • Mounting
    Embedded,Wall-mounted,VESA mounting
LCD
  • Display Type
    10.4" SVGA TFT
  • Resolution
    1024 x 768
  • Colors
    16.2M
  • Active Area (WxH/mm)
    211.2mmx158.4mm(8.31"x6.24")
  • Backlight
    LED
  • MTBF(hour)
    30000hrs
  • Pixel Pitch(HxV)
    0.2063x0.2063
  • Luminance(cd/m2)
    350cd/m2
  • Contrast Ratio
    900:1
  • Viewing Angle
    (L)75/(R)75/(U)75/(D)75
Touchscreen
  • Touch Type
    Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
  • Light Transmission
    >85%
  • Controller
    USB interface
  • Driver Support
    Windows7, Window8, Windows10, Windows11, Linux, etc(Intel® Celeron® J6412,Intel®Core™ 10 or above don't support Win7)
  • Multi-touch
    10 points(Windows)
  • Surface Hardness
    Resistive touchscreen:Mohs' Number> = 3H; Capacitive touchscreen:Mohs' Number 7H
Environment
  • Operating Temperature
    -20 ~ 70℃
  • Storage Temperature
    -30~80℃
  • Relative Humidity
    5~95%(Non condensation)
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz, 1Grms@with HDD; 2Grms@with SSD, follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Front Panel Protection
    IP65
