IPC2X122 Regular Delivery

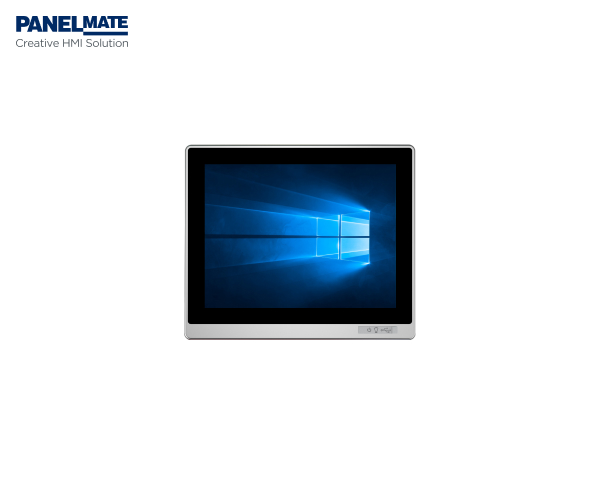

12.2 inch Industrial Panel PC
Product Features

· Display type:10.1",10.4",11.6",12.1",12.2",15",15.6",17",17.3", 18.5",19",21.5",24",27"
· Front panel/back cover:Aluminium-magnesium alloy
· Large aluminium fins design to ensure the reliability and heat dissipation
· IP:Front panel IP65 / Rear cover IP20
· Screen Type:Single point resistive touchscreen,Multi-point capacitive touchscreen,Tempered glass screen
· OS:Win7,Win8,Win10,Win11,Linux,etc
(Intel® Celeron® J6412,Intel®Core™ 10th or above don’t support win7)
· Processor:Intel® Celeron® J6412、Intel® Core™ 6/7/10/11/12/13th i3/i5/i7
· According to the different motherboard, equipped with many interfaces
· DC 12~36V
· Extendable WIFI/4G
· Customized LOGO



Processor
  • CPU
    Intel® Celeron® J6412、Intel® Core™ 6/7/10/11/12/13th i3/i5/i7
  • Bios
    AMI UEFI 64Mbit
  • Chipset
    Intel®Soc
  • Memory
    DDR4-3200 Max 64G
  • Storage
    1 x mSATA+2 x M.2
I/O
  • Network (LAN)
    2 x 1000Mbps RJ45 with surge protection/3xRJ45(processor Intel® Core™ 10/11/12/13th)
  • Audio
    Realtek ALC662VD audio controller,support 5.1 channels
  • USB
    4xUSB3.0
  • COM
    2xRS232/RS485 with surge protection,RS485 support automatic flow control
  • Expansion Slot
    1xMin-Pcle X1,Support 4G LTE/WIFI/BT with Sim card slot
  • Rear I/O
    Intel® Celeron® J6412:1xHDMI/2xRJ45/4xUSB/2xCOM/AUDIO/DC IN/Reset/Ground   Intel® Core™ 6/7th :1xHDMI/2xRJ45/4xUSB/2xCOM/AUDIO/DC IN/Reset/Ground   Intel® Core™ 10/11/12/13th:1xHDMI/3xRJ45/4xUSB/2xCOM/DC IN/Reset/Ground
Power
  • Input Voltage
    DC 12~36V
  • Power
    30W(Intel® Celeron® J6412、Intel® Core™ 6/7th) ; 109W(Intel® Core™ 10/11/12/13th)
Physical
  • Display Port
    HDMI
  • Dimension (WxHxD/mm)
    308.3mmx226.8mmx63.5mm(12.14"x8.93"x2.50")
  • Open Size (WxH/mm)
    297mmx216mm(11.69"x8.50")
  • Mounting
    Embedded,Wall-mounted,VESA mounting
LCD
  • Display Type
    12.2" WXGA TFT
  • Resolution
    1280x800
  • Colors
    16.7M
  • Active Area (WxH/mm)
    262mmx164mm(10.31"x6.46")
  • Backlight
    LED
  • MTBF(hour)
    50000hrs
  • Pixel Pitch(HxV)
    0.2052x0.2052
  • Luminance(cd/m2)
    450cd/m2
  • Contrast Ratio
    1000:1
  • Viewing Angle
    (L)85/(R)85/(U)85/(D)85
LCD
  • Touch Type
    Single point resistive touchscreen & Multi-point capacitive touchscreen& Non-touch screen
  • Light Transmission
    >85%
  • Controller
    USB interface
  • Driver Support
    Windows7, Window8, Windows10, Windows11, Linux, etc(Intel® Celeron® J6412,Intel®Core™ 10 or above don't support Win7)
  • Multi-touch
    10 points(Windows)
  • Surface Hardness
    Resistive touchscreen:Mohs' Number> = 3H; Capacitive touchscreen:Mohs' Number 7H
Environment
  • Operating Temperature
    -20 ~ 70℃
  • Storage Temperature
    -30 ~ 80℃
  • Relative Humidity
    5~95%(Non condensation)
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz, 1Grms@with HDD; 2Grms@with SSD, follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Front Panel Protection
    IP65
