IPC2X190EX-R2

IPC2X190EX-R2 Regular Delivery

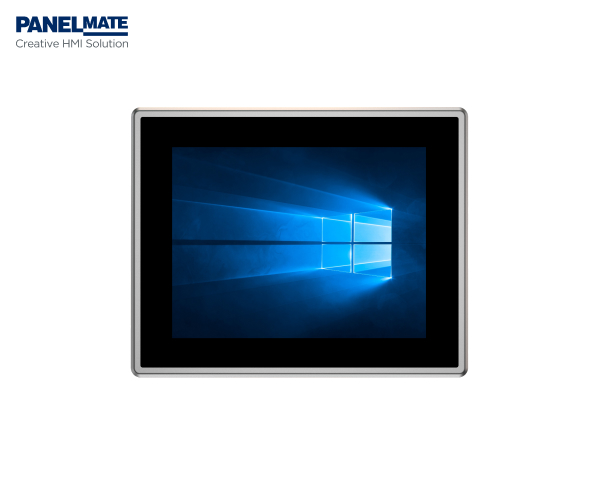

19 inch Industrial ATEX-Ex Panel PC

Product Features

·Passed the ATEX-Ex EU protection certificate

·Display size：12.1",15",15.6",18.5",19,"21.5"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP65

·Screen Type: Multi-point capacitive touchscreen

·OS：WinXP，Win7，Win10/Win11，WinCE，Linux

·Equipped with 2xIntel i210AT Gigabit network cards，4xUSB ports

·Processor：Intel Celeron J6412（don’t support Win XP, Win7）/3855U/ 3865U and Intel skylake i3/i5/i7 multiple CPU optional

·Extendable WIFI/4G

·DC 9~36V

Document Download

CN_DataSheet Download EN_DataSheet Download More Document Download

Naming Rules Specifications

CPU

Intel®Celeron®processorJ6412；Intel®Celeron®processor3855U/3865；Intel®Core™i3processor；Intel®Core™i5processor；Intel®Core™i7processor
Frequency

QuadCore2.0GHZ；DualCore1.6GHZ；DualCore2.3GHZ；DualCore2.8GHZ；DualCore3.1GHZ
Cache

1.5MB；2MB；3MB；3MB；4MB
Memory

DDR4 3200MT/s Max：32GB；DDR4-1866/2133 Max：32GB；DDR4-2133 最Max：32GB；DDR4-2133 Max：32GB；DDR4-2133 Max：32GB
Storage

1x2.5" SATA 3.0 +1 x mSATA

OperatingTemperature

0~55℃
StorageTemperature

-20~60℃
RelativeHumidity

5~95%（Noncondensation）
Shock

Operating10Gpeakacceleration(11msduration),followIEC60068-2-27
Vibration

OperatingRandomVibrationTest5~500Hz,1Grms@withHDD;2Grms@withSSD,followIEC60068-2-64
EMC

CE/FCC Class A
Protection

AllIP65waterproofanddustproof
