IPC2X215

IPC2X215 Regular Delivery

21.5 inch Industrial Panel PC

Product Features

·Display type：10.1",10.4",12.1",12.2",15",15.6",17",18.5",19",21.5",27"

·Front panel/back cover：Aluminium-magnesium alloy

·Large aluminium fins design to ensure the reliability and heat dissipation

·Front panel/Rear：IP65 / IP20

·Screen Type: Single point resistive touchscreen,Multi-point capacitive touchscreen,Non-touch screen

·OS:Win XP, Win7,Win10/Win11, Win CE, LINUX

·Equipped with 2xIntel i210AT Gigabit network cards，4xUSB ports

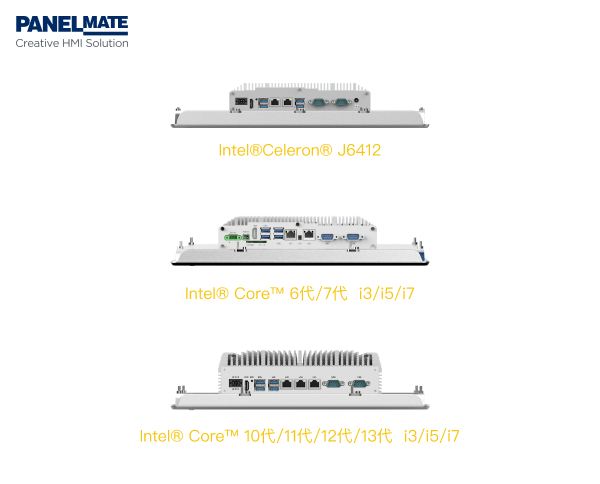

·Processor：Intel Celeron J6412(don’t support Win XP,Win 7)/3855U/ 3865U and Intel skylake i3/i5/i7 multiple CPU options

·Extendable WIFI/4G

·Customized LOGO

Document Download

CN_DataSheet Download EN_DataSheet Download More Document Download

Naming Rules Specifications

CPU

Intel®Celeron® processor 3855U；Intel®Apollo Lake processor J3455；Intel®Core™i5 processor
Frequency

Dual Core 1.6GHZ；Quad Core 1.5GHZ；Dual Core 2.3
Cache

2MB；2MB L2 Cache；3MB Intel®Smart Cache
Memory

DDR4-2133/2400MHz,Max:16GB；1xSODIMM DDR3L 1333MHZ,Max:8GB；DDR4-2133/2400MHz,Max:16GB
Storage

1x2.5" SATA 3.0 +1 x mSATA

Touch Type

Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
Light Transmission

>85%
Controller

USB interface
Driver Support

Windows7，WSE7，Windows 10，Vxworks，Linux
Multi-touch

10 points（Windows）
Surface Hardness

Resistive touchscreen：Mohs' Number> = 3H; Capacitive touchscreen：Mohs' Number 7H

Operating Temperature

0~50℃
Storage Temperature

-20~60℃
Relative Humidity

5~95%（Non condensation）
Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Vibration

Operating Random Vibration Test 5~500Hz, 1Grms@with HDD; 2Grms@with SSD, follow IEC 60068-2-64
EMC

CE/FCC Class A
Front Panel Protection

IP65
