IDD2X101-R2

IDD2X101-R2 Regular Delivery

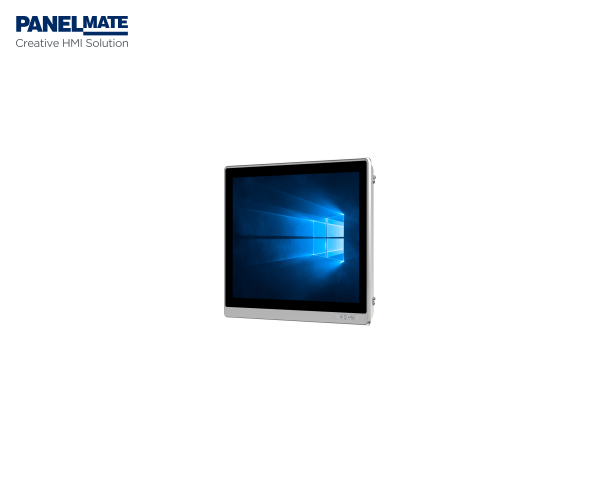

10.1 inch Industrial Monitor KVM

Product Features

·Display type：10.1",10.4",12.1",12.2",15",15.6",17",18.5",19",21.5",24",27"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP20

·Screen Type: Single point resistive touchscreen，Multi-point capacitive touchscreen，Non-touch screen

·OS：Windows7, Window8, Windows10, Windows11, Linux, etc

·Video and touch signals can use the IDD-LINK4 interface simultaneously or using HDMI and USB signals separately
notice:both cannot be used simultaneously

·DC 24V

·R1（IDD-LINK）Long distance USB signal output，support 50m

·R2（IDD-LINK4）Video and USB are transmitted via a single CAT6 network cable，Transmission distance up to 100m

Document Download

CN_DataSheet Download EN_DataSheet Download More Document Download

Naming Rules Specifications

Control button

Set contrast ratio and luminance via OSD at the back cover
Housing

Front panel & back cover:Aluminium-magnesium alloy,Grounding isolation protection
Mounting

Embedded;Wall-mounted;VESA;Desktop

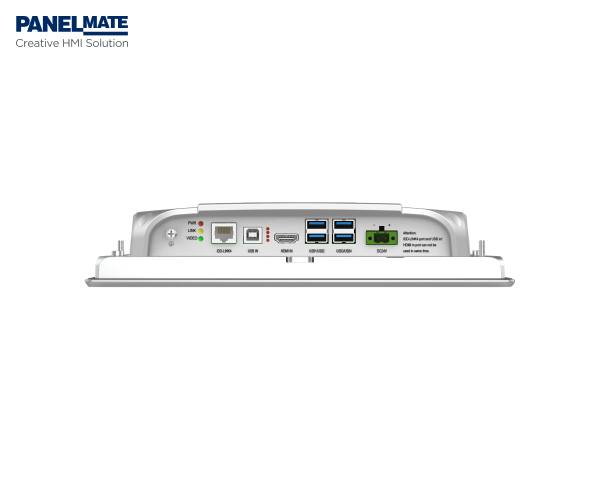

Rear I/O

IDD-LINK4(or HDMI interface) notice:both cannot be used simultaneously

Input Voltage

Phoenix terminal：DC 24V
Power

15W

Dimension (WxHxD)

256.5mm x 193mm x 54mm (10.10" x 7.60" x 2.13")
Open Size (WxH)

248.5mm x 185mm (9.78" x 7.28")

Display type

10.1" WXGA TFT
Resolution

1280 x 800
Colors

16.7M
Active Area (WxH)

216.96mm x 135.60mm (8.54" x 5.34")
Backlight

LED
MTBF(Hour)

30000hrs
Pixel Pitch（HxV）

0.1695 x 0.1695
Luminance(cd/m2)

400cd / m2
Contrast Ratio

800:1
Viewing Angle

(L)85 / (R)85 / (U)85 / (D)85

Touch Type

Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
Light Transmission

>85%
Controller

USB
Driver Support

Windows7, Window8, Windows10, Windows11, Linux, etc
Multi-touch

10 points
Surface Hardness

Resistive touchscreen: Mohs' Number >= 3H;Capacitive touchscreen: Mohs' Number 7H

Operating Temperature

-20 ~ 70℃
Storage Temperature

-30 ~ 70℃
Relative Humidity

5~95%(Non condensation)
Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Vibration

Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
EMC

CE/FCC Class A
Front Panel Protection

Front panel IP65 compliant
