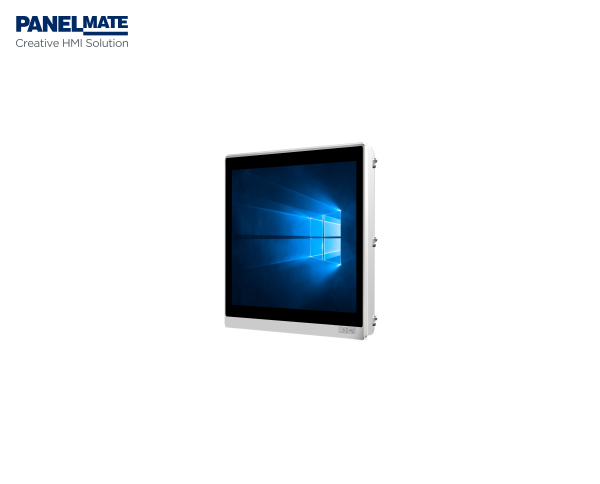

IDD2X156H

IDD2X156H Regular Delivery

15.6 inch Industrial Monitor（FHD）

Product Features

·Display type：10.1",10.4",12.1",12.2",15",15.6",17",18.5",19",21.5",24",27"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP20

·Screen Type: Single point resistive touchscreen，Multi-point capacitive touchscreen，Non-touch screen

·OS:Win XP, Win7,Win10/Win11, Win CE, LINUX

·Interface：DVI，HDMI，VGA video interface，2xUSB

·DC 9~36V wide volts range

·R1(IDD-LINK),Long distance USB signal output，support 50m

·R2(IDD-LINK4),Video and USB are transmitted via a single CAT6 network cable，Transmission distance up to 100m

Document Download

CN_DataSheet Download EN_DataSheet Download More Document Download

Naming Rules Specifications

Control button

Set contrast ratio and luminance via OSD at the back cover
Housing

Front panel & back cover:Aluminium-magnesium alloy,Grounding isolation protection
Mounting

Embedded,Wall-mounted,VESA ,Desktop
Rear I/O

VGA & DVI & HDMI & USB

Touch Type

Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
Light Transmission

>85%
Controller

USB
Driver Support

Windows XP, Windows 7, Windows 8, Windows 10/11, Linux, CE
Multi-touch

10 points
Surface Hardness

Resistive touchscreen: Mohs' Number >= 3H;Capacitive touchscreen: Mohs' Number 7H

Operating Temperature

0 ~ 50℃
Storage Temperature

20 ~ 60℃
Relative Humidity

5 ~ 95% (Non condensation)
Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Vibration

Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
EMC

CE/FCC Class A
Front Panel Protection

Front panel IP65 compliant
