IDD2X156EX-R2

Home Products Embedded Industrial Monitor Embedded Industrial ATEX-EX Monitor

Contact Us

IDD2X156EX-R2 Regular Delivery

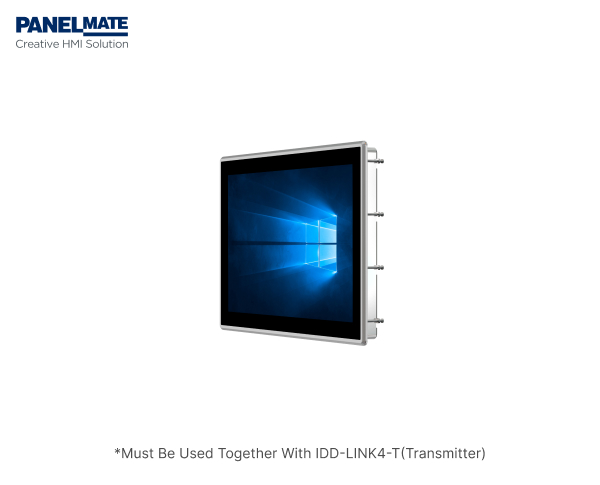

15.6 inch Industrial ATEX Monitor

Product Features

·Passed the ATEX-Ex EU protection certificate

·Display size：12.1",15",15.6",18.5",19,"21.5"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP65

·Screen Type: Multi-point capacitive touchscreen

·WinXP，Win7，Win10/Win11，WinCE，Linux

·Add IDD-LINK4 ports for video and touch signal

·DC 24V

Document Download

CN_DataSheet Download EN_DataSheet Download More Document Download

Naming Rules Specifications

Product Attribute

Built-in aluminium magnesium explosion-proof control display
Housing

Front panel & back cover:Aluminium-magnesium alloy
Mounting

Embedded, VESA 100 with waterproof nut
Rear I/O

1 × M12 4pin DC power supply；1 × M12 8pin IDD-LINK4

Input Voltage

DC 24V input
Power

28W

Dimension (WxHxD)

421.9mm x 281.8mm x 69mm（16.61" x 11.09" x 2.72"）
Open Size (WxH)

403.6mm x 262.3mm（15.89" x 10.33"）

Display type

15.6" WXGA TFT
Resolution

1366 x 768
Colors

16.7M
Active Area (WxH)

344.23mm x 193.54mm（13.55"x 7.62"）
Backlight

LED
MTBF(Hour)

50000hrs
Pixel Pitch（HxV）

0.252 x 0.252
Luminance(cd/m2)

300cd / m2
Contrast Ratio

500:1
Viewing Angle

(L)85 / (R)85 / (U)85 / (D)85

Touch Type

Multi-point capacitive touchscreen
Light Transmission

>85%
Controller

USB
Driver Support

Windows XP, Windows 7, Windows 8, Windows 10/11, Linux, CE
Multi-touch

10 points
Surface Hardness

Capacitive touchscreen: Mohs' Number 7H

Operating Temperature

0~55℃
Storage Temperature

-20~60℃
Relative Humidity

5~95%(Non condensation)
Shock

Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
Vibration

Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
EMC

CE/FCC Class A
Front Panel Protection

All IP65 waterproof and dustproof

II 3 G Ex ec IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
EN 60079-0:2018
EN 60079-7:2015
EN 60079-31:2014
