IDD2X185EX-R2 Regular Delivery
18.5 inch Industrial ATEX Monitor
Product Features


·Passed the ATEX-Ex EU protection certificate

·Display size：12.1",15",15.6",18.5",19,"21.5"

·Front panel/back cover：Aluminium-magnesium alloy

·Front panel/Rear：IP65 / IP65

·Screen Type: Multi-point capacitive touchscreen

·OS：Win7,Win8,Win10,Win11, Linux

·Add IDD-LINK4 ports for video and touch signal

·DC 24V

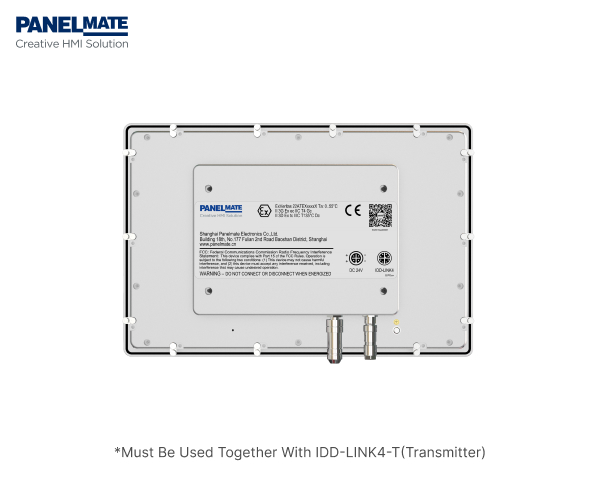

·Must purchase IDD-LINK4-T to cooperate with the use



Document Download
CN_DataSheet Download EN_DataSheet Download More Document Download
Naming Rules Specifications
Routine
  • Product Attribute
    Built-in aluminium magnesium explosion-proof control display
  • Housing
    Front panel & back cover:Aluminium-magnesium alloy
  • Mounting
    Embedded, VESA 100 with waterproof nut
  • Rear I/O
    1 × M12 4pin DC power supply；1 × M12 8pin IDD-LINK4
Power
  • Input Voltage
    DC 24V input
  • Power
    26W
Physical
  • Dimension (WxHxD)
    477.8mm x 302mm x 69mm（18.81" x 11.89" x 2.72"）
  • Open Size (WxH)
    465.8mm x 290mm（18.34" x 11.42"）
LCD
  • Display type
    18.5" WXGA TFT
  • Resolution
    1366 x 768
  • Colors
    16.7M
  • Active Area (WxH)
    409.8mm x 230.4mm（16.13" x 9.07"）
  • Backlight
    LED
  • MTBF(Hour)
    30000hrs
  • Pixel Pitch（HxV）
    0.3 x 0.3
  • Luminance(cd/m2)
    500cd / m2
  • Contrast Ratio
    1000:1
  • Viewing Angle
    (L)89 / (R)89 / (U)89 / (D)89
Touchscreen
  • Touch Type
    Multi-point capacitive touchscreen
  • Light Transmission
    >85%
  • Controller
    USB
  • Driver Support
    Windows XP, Windows 7, Windows 8, Windows 10/11, Linux, CE
  • Multi-touch
    10 points
  • Surface Hardness
    Capacitive touchscreen: Mohs' Number 7H
Environment
  • Operating Temperature
    0~55℃
  • Storage Temperature
    -20~60℃
  • Relative Humidity
    5~95%(Non condensation)
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Front Panel Protection
    All IP65 waterproof and dustproof
Certification
  • II 3 G Ex ec IIC T4 Gc
  • II 3 D Ex tc IIIC T135°C Dc
  • EN 60079-0:2018
  • EN 60079-7:2015
  • EN 60079-31:2014
