TP2 New Product Release

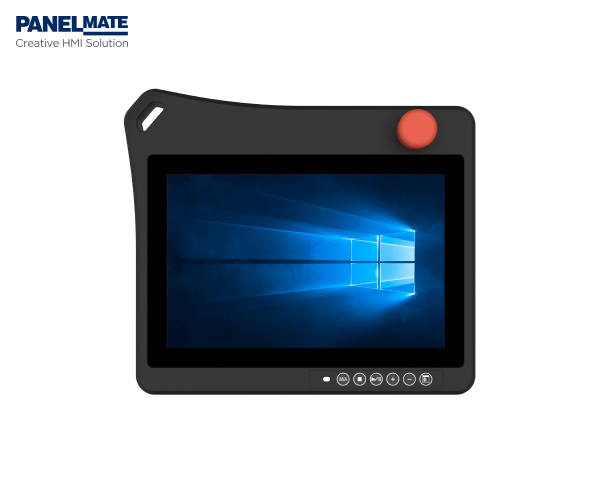

Teach Pendant
Product Features

·10.1" teach pendant for handling robots,resolution 1280x800

·IP:IP54

·Ergonomic design, comfortable and easy to operate

·The button in the lower right corner of the GUI for quick access to custom functions

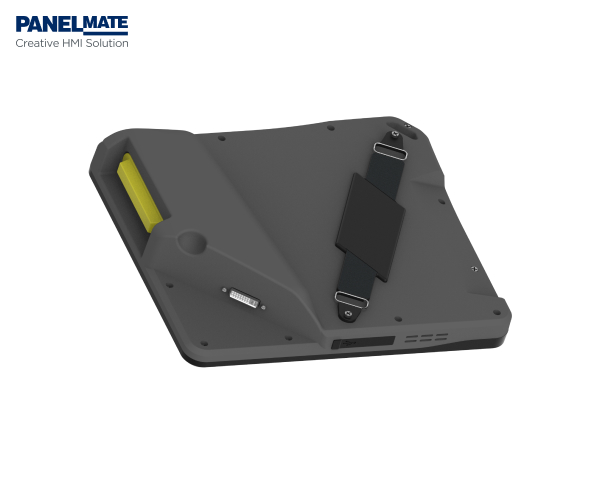

·Moderate display size,shoulder straps and grips are designed to simplify operation and prevent fatigue

·System frame grounding protection (GPE) design

·Optional R2(IDD-LINK4),Video and USB are transmitted via a single CAT6 network cable up to 100 meters

·OS:Win7,Win8,Win10,Win11,Linux,etc

·DC 24V

Routine
  • Housing
    Front panel:aluminium magnesium alloy ; Rear cover:ABS+PC
  • Interface
    Emergency stop+24V+3-digit Enable button+DVI-D+USB In signal
Power
  • Input Voltage
    DC 24V
  • Power
    5W
Physical
  • Dimension(WxHxD)
    279mm x 228.6mm x 80.6mm(10.98" x 9" x 3.17")
  • Net Weight
    1.4kg
LCD
  • Display Type
    10.1" WXGA TFT
  • Resolution
    1280 x 800
  • Colors
    16.7M
  • Active Area (WxH)
    216.96mm x 135.60mm (8.54" x 5.34")
  • Backlight
    LED
  • MTBF(hour)
    30000hrs
  • Pixel Pitch(HxV)
    0.1695 x 0.1695
  • Luminance(cd/m2)
    400cd / m2
  • Contrast Ratio
    800:1
  • Viewing Angle
    (L)85 / (R)85 / (U)85 / (D)85
Touchscreen
  • Touch Type
    Multi-point capacitive touchscreen
  • Light Transmission
    >85%
  • Controller
    USB Interface
  • Driver Support
    Windows7, Window8, Windows10, Windows11, Linux, etc
  • Multi-touch
    10 points
  • Surface Hardness
    Capacitive touchscreen:Mohs' Number 7H
Environment
  • Operating Temperature
    -20~70℃
  • Storage Temperature
    -30~70℃
  • Relative Humidity
    5~95%(Non condensation)
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz, 1Grms@with HDD;2Grms@with SSD, follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Protection level
    IP54
