HPS51X Regular Delivery
Pulse Cable

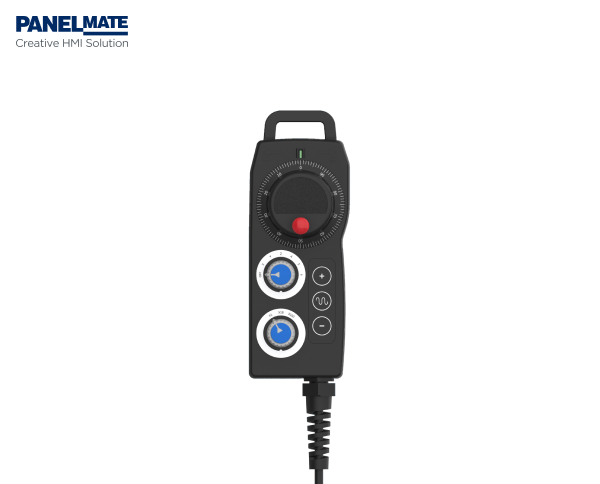

Hand-held Pendant Station(HPS)
Product Features

·Support multi-communication,including EtherCAT,Modbus-TCP,ADS and etc

·Protection level:IP50

·Standard products are suitable for laser cutting equipment and other metal process industry

·The wireless handheld pendant station can be rechargeable with lithium battery

·Wired HPS with DC 24V power supply

·Work temperature:-20~70℃

·Customized per requested

Document Download

System parameters
  • Size(LxWxH/mm)
    180 x 88 x 56
  • Mounted
    Magnet+Holder
  • Material
    ABS
  • Magnification Switch
    2pcs axis selector+Pilse
  • Membrane Switch
    3 keys
  • Emergency Stop
    No
  • Communication
    EtherCATbus
  • Connection
    Wireless
  • Color
    Grey
  • Operating Voltage
    DC 24V
  • Power Supply
    Rechargeable Li-ion battery
  • Operating Temperature(℃)
    -20~60
  • Storage Temperature(℃)
    -40~75
  • Relative Humidity
    100%
  • Protection
    IP50
  • ButtonLifetime(10Ktimes)
    100
  • Carton Size(cm)
    30 x 20 x 8
